Revolving Shackles

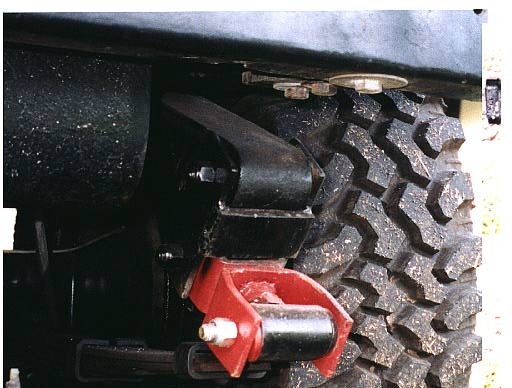

I made these shackles after seeing a similier design on the internet. They relieve the stress on the springs caused by axel twist during articulation. When the axel droops, the shackle will "unfold" and allow additional droop. The swivel is made with a 1" Grade8 bolt welded to one side and a Grade8 threaded sleeve welded to the other.

More Shackle Photos

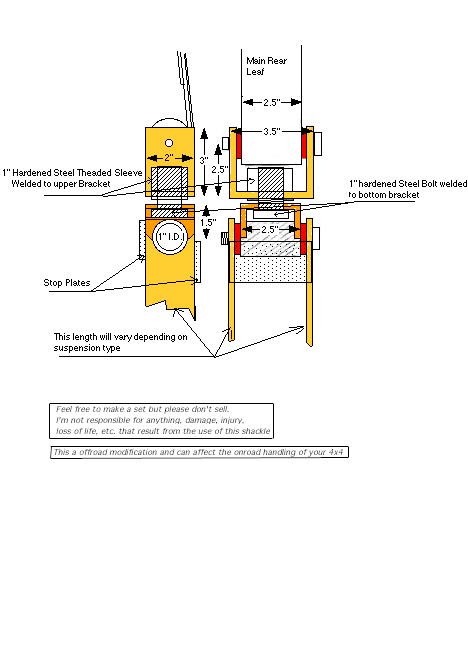

Heres a drawing if you'd like to make your own
