Galaxy DX2547

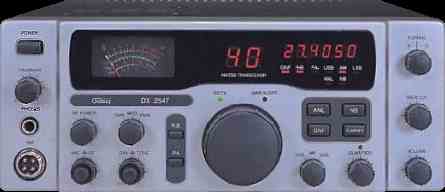

Galaxy DX-2547




DX2547 PCB

Microphone Connection

Pin Description
1 Ground
2 Microphone
3 TX Key (Connect to Ground)
4 Speaker (Connect to Ground)


DX2547 Schematic Diagram
RCI-8719 PLL Frequency Synthesizer
S042P TX Mixer
KIA6410S Oscillator, Mixer and Amplifier
AN612 Balanced SSB Modulator
TA7222 Audio Power Amplifier
NJM4558 Dual Operational Amplifier
TA6324 Quad Operational Amplifier
2SC2166 RF Driver Transistor
2SC2086 RF Pre-Driver Transistor

Improved receive gain

Quieting of AM reception and improving gain of incoming signals is a common request from radio operators. In the first stages of the HF input 2SC1674 transistor can be found. This transistor is responsible for the amplification of a small detected signals. A problems exist if the transistor itself is noisy as is such the case of the 2SC1674 when compared to other low noise packages. Along with the amplification of the incoming signals is transistor noise. Replacement of this transistor with a higher gain, lower noise transistor greatly improves the signal to noise ratio of your receiver.
We will use an 2SC2999 transistor that has higher gain lower noise characteristic. Replace the 2SC1674 (TR17) with an 2SC2999 (or similar low noise and high gain transistor) to achieve this improved signal to noise ratio.
Re-Adjust L5 and L6
The gain will improved with more than 6dB with the same signal to noise ratio.
