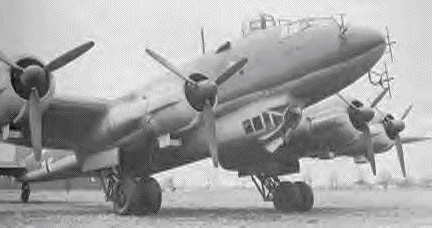

Focke - Wolfe 200 Condor
The Focke Wolfe 200 Condor was used as a recon/anti shipping bomber. It sank many merchent ships in the Battle for the Atlantic.
Type: Maritime reconaissance bomber, missle platform, and transport
Engine:
Engine: 4
BMW-Bramo Fafnir 323R-2 nine-cylinder radial
1,200hp
Dimensions:
Wing span 32.84m
Length 23.46m
Height: 6.3m
Weight:
50,045 lbs.
Performance:
Speed: 224mph
Ceiling: 19,030ft (5800m)
Armament:
Forward Dorsal Turret:
One 15mm MG 151/15, One 20mm MG 151/20 Or One 7.92mm MG 15 with 1,000 rnds mounted in hydralically operated FW 19 turret
Ventral Gondola:
One 20mm MG 151/20 with 500 rnds. manually aimed at front
One 7.92mm MG 15 with 1,000 rnds. manually aimed at rear
Beam:
Two 7.92mm MG 15 Or Two 13mm MG 131 with 300 rnds.
Aft Dorsal Position:
One 13mm MG 131 with 500 rnds.
Bomb Load:
4,626 lbs. (2100kg) carried in ventral gondola and beneath wings
Missle Load: (C-6 to C-8 models)
Two Hs 293 Anit-Ship Missles under outboard nacelles
